Rugged Mini PCs for Application
The compact and rugged housing of our fanless mini PCs allows you to fit them into tight spaces like corners, control cabinets, or behind a monitor.
The compact and rugged housing of our fanless mini PCs allows you to fit them into tight spaces like corners, control cabinets, or behind a monitor. These industrial mini pcs are designed to run for years without the need for maintenance, meaning you can install, set up, and move on to your next project without a second thought. The CPU Intel IvyBridge 3217U give these mini pcs a great advantage of operation without any moving parts, it could be 3 antenna holes and 6 USB ports, and it could be customized, provide high and good service.
|
Product name: |
car pc |
|
CPU: |
•Intel® IvyBridge 3217U 1.8GHz, 3M Cache Intel® HD 4000 |
|
Main Memory: |
•1 x DDR3 , support up to 16GB DDR3 1600/ 1333 |
|
Storage: |
•1 x 2.5" SATA HDD drive bay |
|
Lan: |
•Realtek RT8111E, 10/100/1000M, Support PXE, Wake on Lan |
|
Audio: |
•Realtek ALC662 |
|
Watchdog Timer: |
•255 levels, 0~255 sec |
|
BIOS: |
•AMI EFI 32MB SMT Flash ROM |
|
Expansion: |
•2 x Mini-PCIe socket onboard |
|
I/O Interface-Front: |
•Power on/ off switch |
|

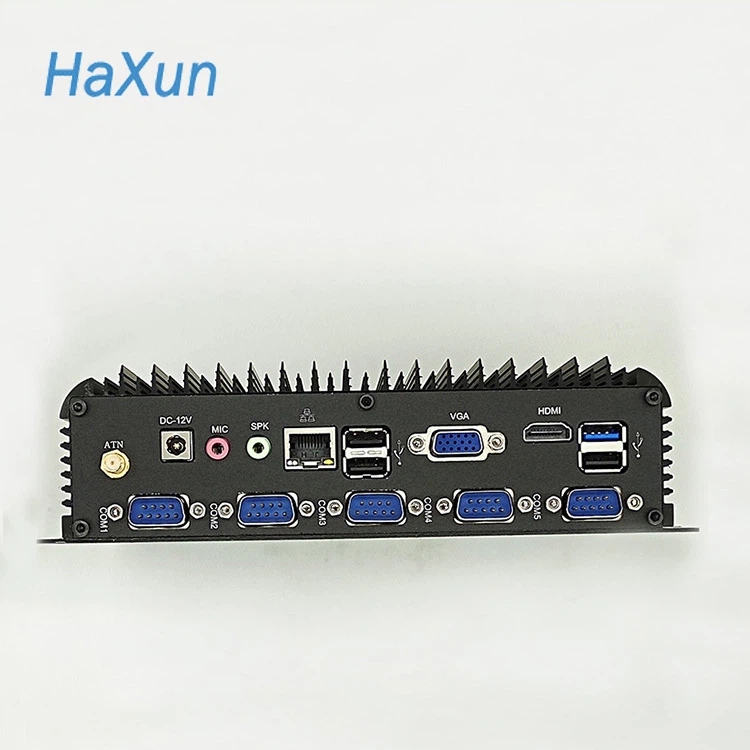

I/O Interface-Rear:
|
•6 x USB 2.0+2x RS232 Or 4 x USB 2.0+5x RS232 •1 x RJ45 •1 x VGA •1 x HDMI •1 x MIC-in •1 x Audio •1x DC IN •3x Antenna holes (Either optional Wi-Fi or Mobile wireless module) |
|
Power Requirements: |
•6~36V Wide Voltage input |
|
Dimensions: |
•225 mm (W) x 188 mm (D) x 59mm (H) |
|
Construction: |
•Aluminum Chassis |
|
Environment： |
•Operating temperature: Ambient with air flow: -10°C to 60°C (with industrial grade devices)(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
|
Storage temperature: |
-20°C ~ 80°C |
|
Relative humidity: |
10% to 93% (Non-condensing) |
|
Anti-Vibration: |
5Hz~500Hz/1Grms/3Axis |
|
Anti-Shock: |
15G, 11ms Duration |
