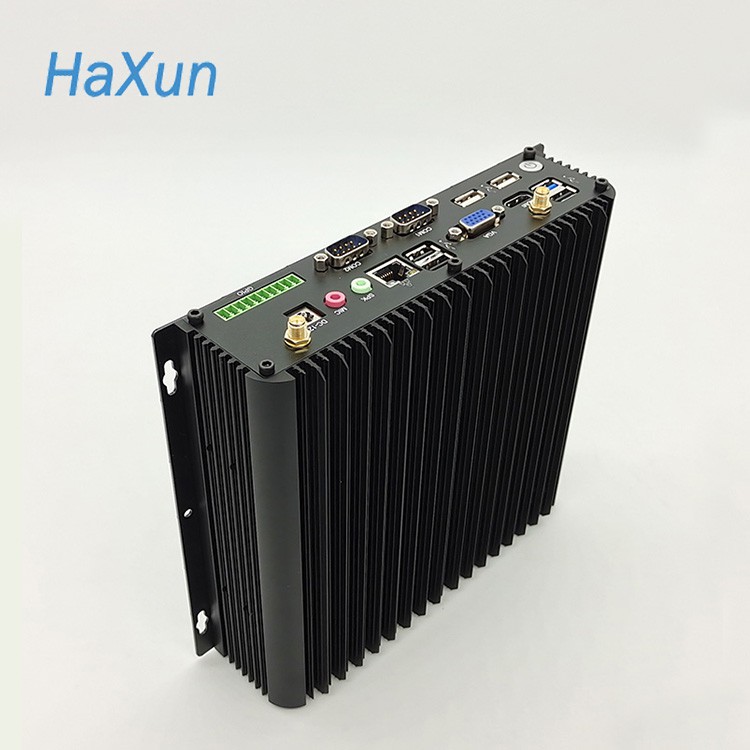

Industrial Rugged Computer with 3G

Product name:

rugged computer with 3G

CPU:

•Intel® Skylake i5 6200U, 2.3GHz~2.86GHz Dual Cores processor, 3M

Cache

Intel® HD Graphics 520

Main Memory:

•1 x DDR3 , support up to 16GB DDR3 1600/ 1333

Storage:

•1 x 2.5" SATA HDD drive bay

Lan:

•RTL8111E, 10/100/1000M, Support PXE, Wake on Lan

Audio:

•Realtek ALC662

Watchdog Timer:

•255 levels, 0~255 sec

BIOS:

•AMI 32MB Flash ROM

Expansion:

•2 x Mini-PCIe socket onboard

I/O Interface-Front:

•Power on/ off switch

I/O Interface-Rear:

•6 x USB 2.0+2x RS232

•1 x RJ45

•1 x VGA

•1 x HDMI

•1 x MIC-in

•1 x Audio

•1x DC IN

•2 x Antenna holes (Either optional Wi-Fi or Mobile wireless module)

Power Requirements:

•12V DC IN / 8~28V Wide Voltage input( Optional)

Dimensions:

•225 mm (W) x 188 mm (D) x 59mm (H)

Construction:

•Aluminum Chassis

Environment：

•Operating temperature: Ambient with air flow: -10°C to 60°C

(with industrial grade devices)(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage temperature:

-20°C ~ 80°C

Relative humidity:

10% to 93% (Non-condensing)

Anti-Vibration:

5Hz~500Hz/1Grms/3Axis

Anti-Shock:

15G, 11ms Duration
