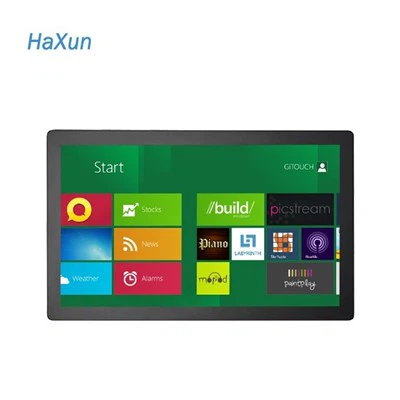

IP65 Marine Panel Pc With Poe
Marine panel pc support 8inch,10.4inch,12.1inch,15inch,17inch, also it can be customized,include logo,function,size,color.
A marine panel PC with POE (Power over Ethernet) refers to a rugged and waterproof computing device designed for use in marine environments. POE, on the other hand, stands for Power over Ethernet, a technology that allows both power and data to be transmitted over a single Ethernet cable.
Combining these two features, a marine panel PC with POE can be a practical and efficient solution for certain marine applications. It simplifies cabling and power requirements, reducing the number of cables needed to power and connect the device. In marine settings, where space is often limited and exposure to harsh elements is a concern, such a computing device can be advantageous.
Here are some possible use cases:
Marine Navigation Systems: These industrial panel PCs can be integrated into navigation systems on ships, boats, or other marine vessels, providing real-time GPS tracking, weather updates, and other essential information for safe navigation.
Marine Automation and Control: In maritime industries, panel PCs can be used to control and monitor various systems on board, such as engines, pumps, and other machinery.
Marine Monitoring and Surveillance: A rugged panel PC can be used as a central hub for collecting data from different sensors, cameras, and surveillance equipment installed on a vessel.
Maritime Research and Survey: Researchers and surveyors conducting marine studies can utilize these PCs for data collection, analysis, and communication.
Entertainment and Communication: Panel PCs can also serve as onboard entertainment systems, providing access to music, movies, internet browsing, and communication applications.
When looking for a marine panel PC with POE, it's essential to consider factors like durability, waterproof and dustproof certifications (e.g., IP65 or higher), operating temperature range, sunlight readability, and the specific requirements of the intended marine application.
| Optionals | Capacitive Touch:optional 6~36V Voltage:optional WIFI: optional 2 Gigabit Ethernet Ports: optional 5~10 COMs RS232/422/485:Negociated 4GB/8GB/16GB RAM, i3,i5,i7: Negociated 32GB/64GB/128GB/256GB SSD: Negociated |
| System Parameters | |
| Processor&Chipset | •Onboard Intel® Atom™ D2550 Dual Core 1.86GHz, NM10 Chipset •Onboard Intel® J1900 Four Cores, 2.0GHz, 2M Cache ,NM70 Chipset •Onboard Intel® i3,i5,i7, 4th~9th Generation |
| Memory | 1 x DDR3 SO-DIMM socket, 2GB/4GB/8GB/16GB |
| Storage | 1 x 2.5" SATA 500GB/1TB/2TB 1 x Msata 16GB/32GB/64GB/128GB/256GB |
| Cooling System | Fanless design |
| BIOS | AMI 16MB DPI Flash |
| Watchdog Timer | 255 level, 0~255 sec |
| LAN | 1 x Realtek RT8111E, 10/100/1000M, Support PXE, Wake on Lan |
| Audio | Realtek ACL662 Audio controller, Line-out, Mic-in. |
| Expansion Port | 2 x MINI PCI-E full slot, 1 x SIM |
| OS | Linux/ Win dows XP/7/8/10 |
| Degree of protection | |
| Front Panel IP65 | Default |
| Whole IP65 | Optional |
| Display Parameters | |
| LCD Size | 12.1" TFT (LED Backlight) |
| Resolution | 1024*768 |
| Brightness | 420cd/m² (1000cd/m² optional) |
| Aspect ratio | 4:3 |
| Life Time | 50,000hrs |
| Contrast Radio | (700:1) |
| Response Time | 10ms |
| Viewing Angle | Whole View Angle 80/60(U/D), 80/80(L/R) |
| Color Resolution | 16.7M |
| Touch Screen Parameters | |
| Touch Type | 5 wired Resistive Touch |
| Touch Validity: | >1,000,000 |
| Capacitive Touch | Optional |
| Surface Hardness | 6H>(Capacitive Touch) |
| Resolution | 4096*4096 |
| Life Time | 50,000hrs |
| Transparent Rate | >85% |
| IO Interface | |
| COM | 2 x COM(Default RS232, 6 maximum) |
| RS422/485 | Optional (1x RS485/422) |
| USB | 3 x USB2.0+1 x USB2.0 |
| LAN | 1 x RJ45, 10/100/1000M(2RJ45 Optional) |
| Audio | Line-out, Mic-in |
| VGA | 1x |
| HD MI | 1x |
| Power Supply | |
| Power Supply | 12V DC Power Input |
| Power Comsuption | <40W |
| Wide Voltage | Optional (DC 6~36V Wide Voltage, IPTS ) |
| Installation | |
| VESA | 100mm*100mm |
| Embedded | Cabinet Hole Size: 298mm*234mm |
| Enclosure | |
| Housing Material | Aluminum Chassis with fanless design |
| Dimensions | 303 mm (W) x 239mm (D) x 67 mm (H) |
| Net Weight | 4KG |
